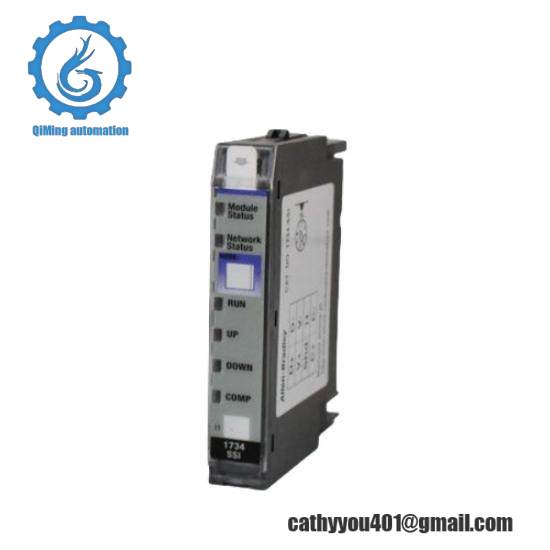

Allen-Bradley 1734-SSI Encoder Input Module

Model Type:I/O Modules

Model Number:1734-SSI

Manufacturer(s):Allen-Bradley

Additional Information:Point I/O™ PointBlock Digital AC/DC Module

Number of Channels:16

Input Channels:8

Output Channels:8

Voltage Rating:120 VAC

Current Rating:5 MA

Communication Protocol:DeviceNet

Mounting:DIN Rail

Length:5-1/4 IN

Width:2.36 IN

Height:3 IN

Temperature Rating:-20 To 55 DEG C

Environmental Conditions:Storage Temperature: -40 To 85 DEG C (-40 To 185 DEG F)

Relative Humidity:5 – 95% (Non-Condensing)

Vibration:5 G At 10 – 500 HZ

Operating Shock:30 G

Non-Operating Shock:50 G

Power Consumption:Backplane current draw of 110 mA @ 5V dc.

    The Allen-Bradley 1734-SSI Encoder Input Module is designed to seamlessly integrate with Allen-Bradley’s 1734 POINT I/O product family, offering unparalleled reliability and compatibility within industrial automation environments.

    Engineered with one (1) SSI channel, this module requires the use of the 1734-TB or 1734-TBS wiring base assembly at key switch position 2 for optimal performance.

    Featuring an extensive temperature range and environmental conditions, this module ensures robust operation in diverse industrial settings, including storage temperatures ranging from -40 to 85 degrees Celsius and relative humidity up to 95% non-condensing.

    The inclusion of DeviceNet communication protocol enables seamless integration with a wide array of Allen-Bradley and third-party devices, enhancing system efficiency and flexibility.

    With its compact size, durable construction, and high-channel count, the 1734-SSI Encoder Input Module provides an efficient solution for managing multiple data inputs, making it an ideal choice for complex industrial automation applications.
